Premium SS Composit Warm Edge Spacer Bar for Double Glazed Units
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Glass Fiber + Aluminum | Color | Black + Silver |
|---|---|---|---|
| Length | 5m | Application | Insulated Glass Unit |
| After-sale Service | Online Technical Support | Packing | Carton |
| Design Style | MOrdern | Certificate | ISO COA |
Product Description

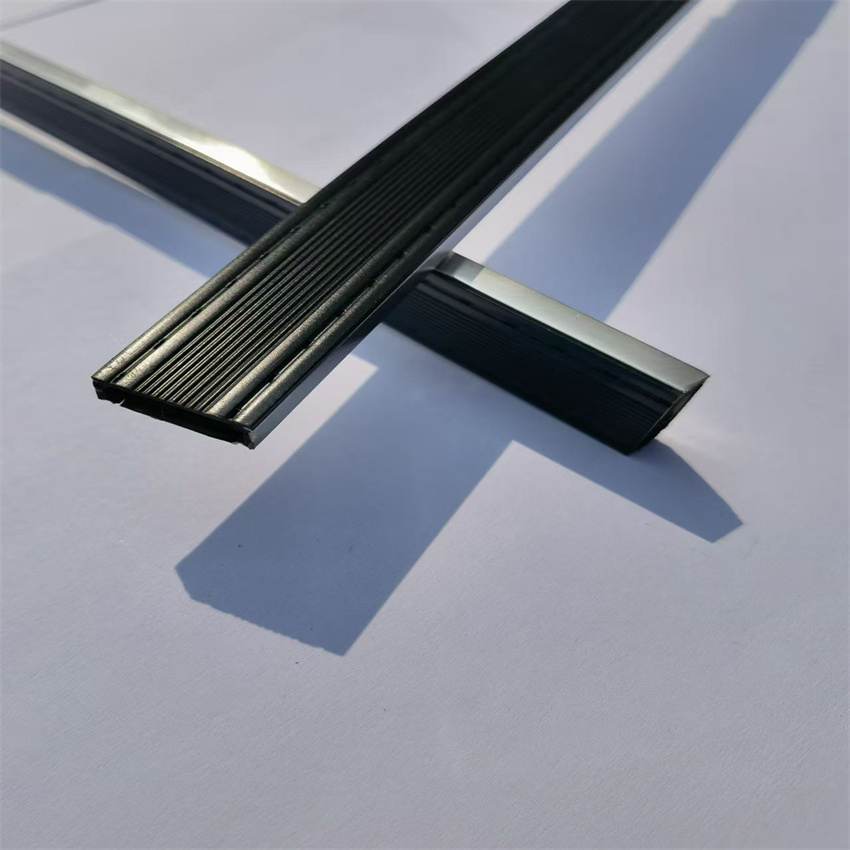

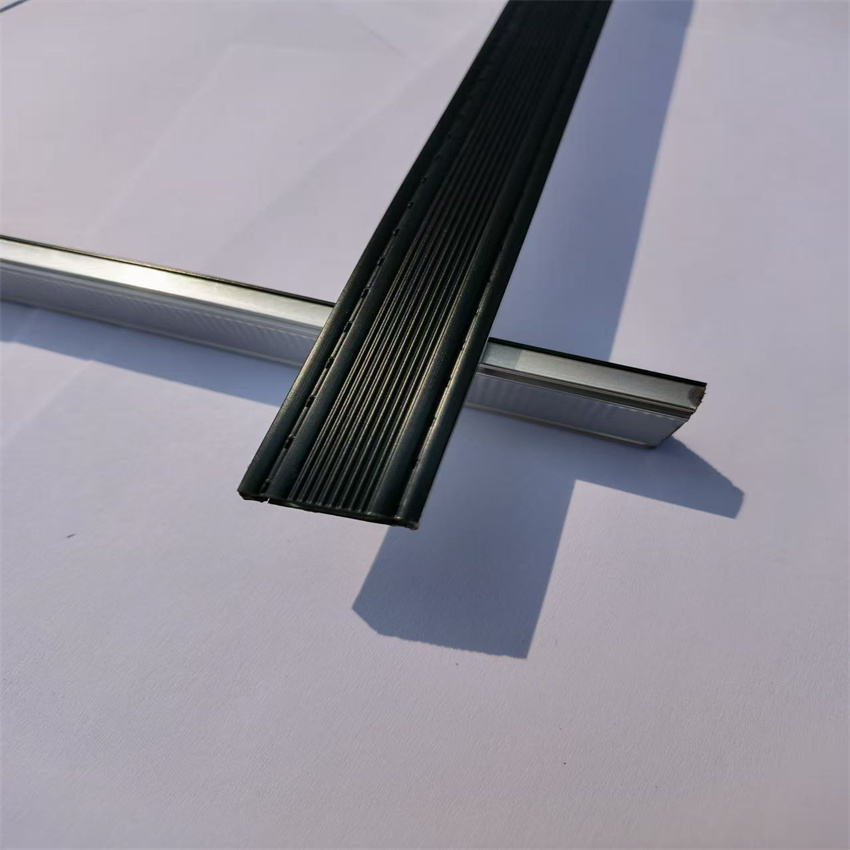

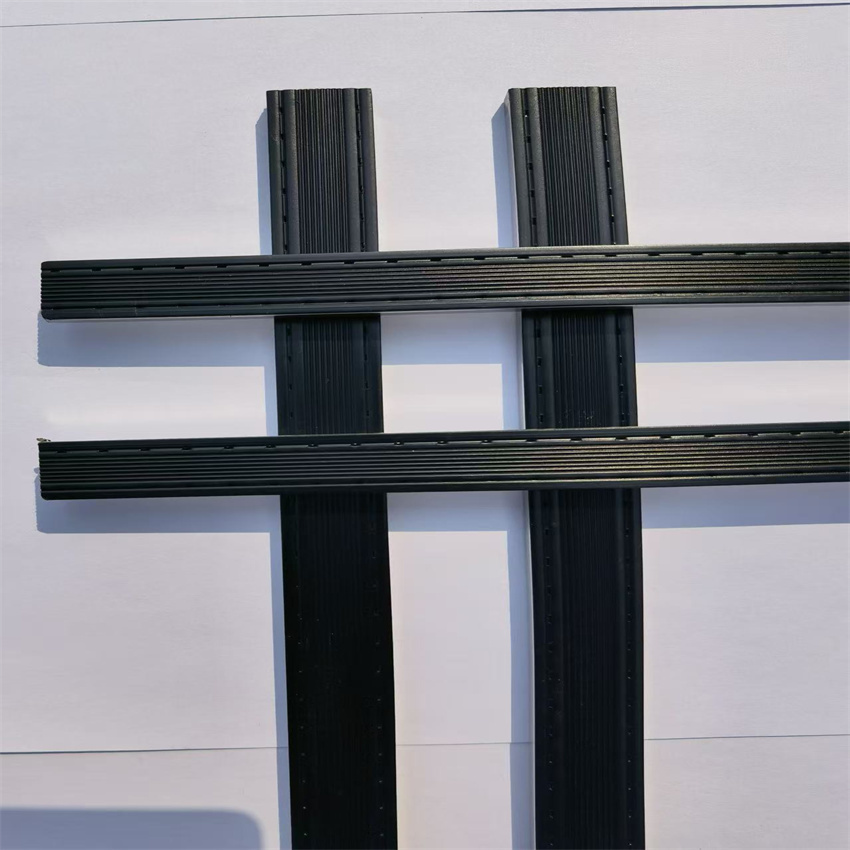

Premium SS Composit Warm Edge Spacer Bar for Double Glazed Units
Premium SS Composit Warm Edge Spacer Bar for Double Glazed Units is a thermal insulation material used in insulating glass units, manufactured through a cold and hot co-extrusion process that combines stainless steel with composite materials (such as PVC, AGR, or PP). It features low thermal conductivity. Its core function is to reduce heat transfer, enhance the thermal insulation performance of the glass, and simultaneously suppress condensation phenomena.
Structure and Materials
The stainless steel composite warm edge spacer consists of a three-layer structure:
- Stainless Steel Layer: Provides structural strength and corrosion resistance .
- Composite Material Layer (e.g., PVC, AGR, PP): Reduces the thermal conductivity and forms a thermal break structure .
- Cavity Design: Filled with desiccant and separates the glass panes .
- Outstanding Thermal Insulation: Its thermal conductivity is only about 1/10 that of traditional aluminum spacers, effectively weakening the thermal bridge effect .
- Anti-Condensation Effect: Reduces the temperature difference between the inside and outside of the glass, lowering the risk of condensation in autumn and winter .
- Processing Flexibility: The cold and hot co-extrusion process allows it to meet complex bending requirements .
Application Scenarios
It is primarily used in double or triple insulating glass units and is suitable for sound insulation and energy-saving renovations of doors and windows .
Choose seamless, choose lasting - keeping every window crystal clear.
|
product name
|
Premium SS Composit Warm Edge Spacer Bar for Double Glazed Units |
|
Size rang
|
6a-27a
|
|
Length
|
5m
|
|
Package
|
carton
|
|
Weight
|
Customized
|
|
Product efficacy
|
Weather resistance, aging resistance and water resistance
|
FAQ
Q: Are you trading company or manufacturer ?
A: Yes we are factory specialized in Premium SS Composit Warm Edge Spacer Bar for Double Glazed Units producing.
Q: How long is your delivery time on Premium SS Composit Warm Edge Spacer Bar for Double Glazed Units?
A: Generally it is 5-10 days if the goods have stock. or it will take 10-20 days to produce according to your order quantity.
Q: Do you provide samples of Premium SS Composit Warm Edge Spacer Bar for Double Glazed Units? Is it free or extra charge?
A: Yes, we could offer the sample for free, buyer afford the cost of freight.
Q: What is your terms of payment?
A: LCL, 100% in advance. FCL 30% T/T in advance, balance by copy of BL. If you have another question, pls feel free to contact us as below:
